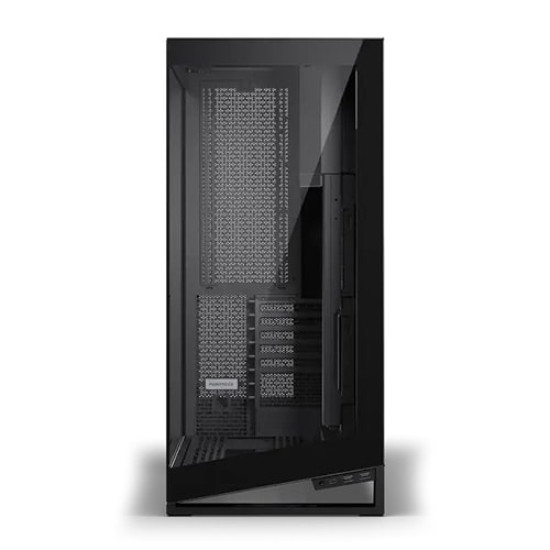

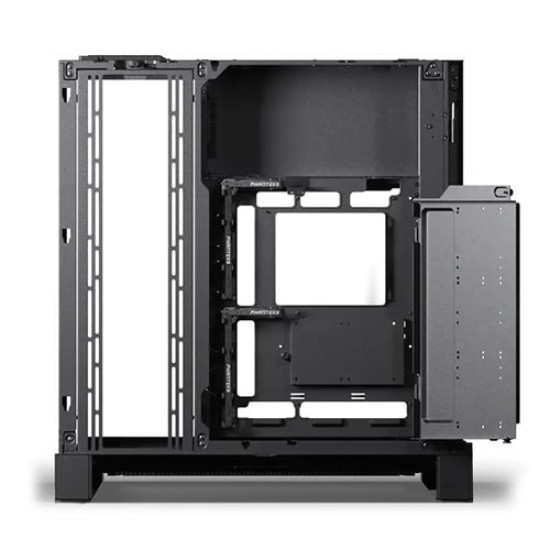

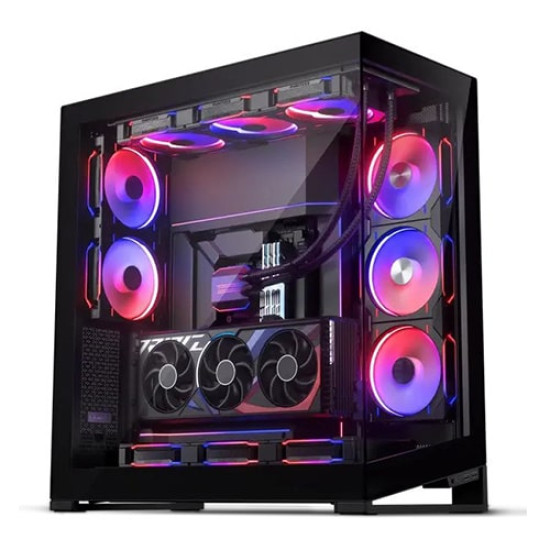

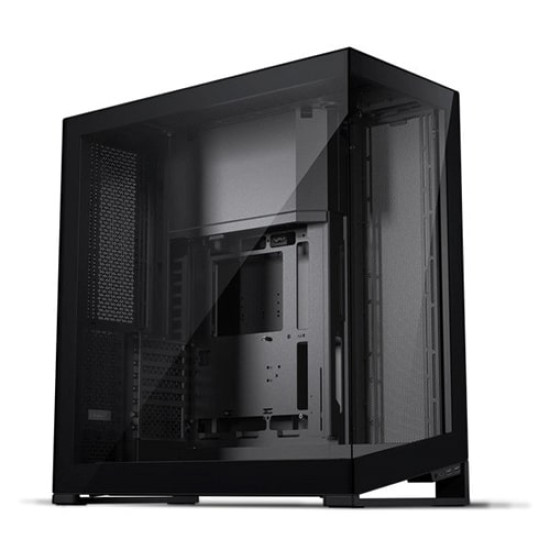

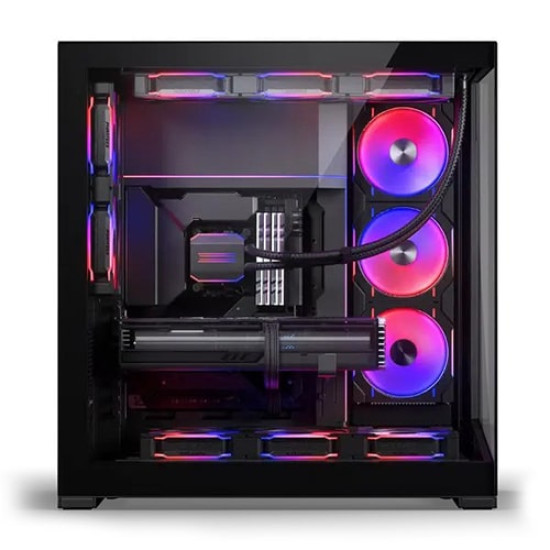

Phanteks NV9 MKII E-ATX Full Tower Cabinet Black (PH-NV923TG-DBK02)

Key Features

• Phanteks NV9 MKII E-ATX Full Tower Cabinet Black
• The Phanteks NV9 MKII is a full-tower chassis, featuring a stunning near-seamless glass view and support for twelve 140mm fans and triple 420+280 radiators simultaneously. Following the same unmistakable purpose design of the NV7, it highlights the system components with the mainboard at its center. Combined with a strong and defining outer frame it captures and accentuates the hardware components.
• With a clean design from all sides, the NV9 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.

Specification

General

Model No. : PH-NV923TG_DBK02

Case Dimensions : 575 x 280 x 615 mm | 22.63 x 11.02 x 24.21 in

Form Factor : Full Tower

Materials : Steel chassis | Tempered glass

Side Window : Yes

PCI Slots : 8

Internal 2.5″ Bay : 6

Mainboard Support

*E-ATX | ATX | Micro-ATX | Mini-ITX

*Up to 280mm wide

Vertical GPU Support

3-slots

*Riser Cable sold separately

Internal 3.5″ Bay

3

+ 2x 2.5″ SSD

Max. 24mm HDD height when SSDs installed.

Front I/O

1x USB 3.2 USB-C Gen2

2x USB 3.0

Microphone | Headphone Combo

Power Button

D-RGB Mode Button

D-RGB Color Button

D-RGB Speed Button

D-RGB Channel Button

Fans

Total Fans : 120 mm | 140 mm : 12x | 11x

Top : 3x | 3x

Front : – | –

Side : 4x | 3x

Bracket : 2x | 2x

Rear : 3x | 3x

Radiators

Top : Max. 360 | 420

Front : – | –

Side : Max. 480 | 420

Rear : Max. 240 | 280

Bottom : Max. 360 | 420

Clearance

CPU Cooler Height : 205 mm | 8.07 in

GPU Length : 490 mm | 19.29 in

GPU Width : 205 mm | 8.07 in

Power SupplyLength : 210 mm | 8.26 in

Top Radiator Length x Width : 515 x 154 mm | 20.27 x 6.06 in

Front Radiator Length x Width : N/A

Side Radiator Length x Width : 525 x 154 mm | 20.66 x 6.06 in

Rear Radiator Length x Width : 325 x 154 mm | 12.79 x 6.06 in

Extra

Scope of Delivery : 1x NV9 chassis

Accessory Box

2x Airflow covers

1x Microfiber cloth

6x Zip ties

1x GPU support bracket

Screws

34x Mainboard | SSD screws

4x Power supply screws

4x Thumb screws

9x HDD screws

1x Motherboard stand-off

1x Stand-off removal tool

1x Extra R-side panel screw
